Name: PHW80NQ10T,127
Brand: NXP USA Inc.
SKU: PHW80NQ10T,127
Availability: InStock

REF: PHW80NQ10T,127 NXP USA Inc.

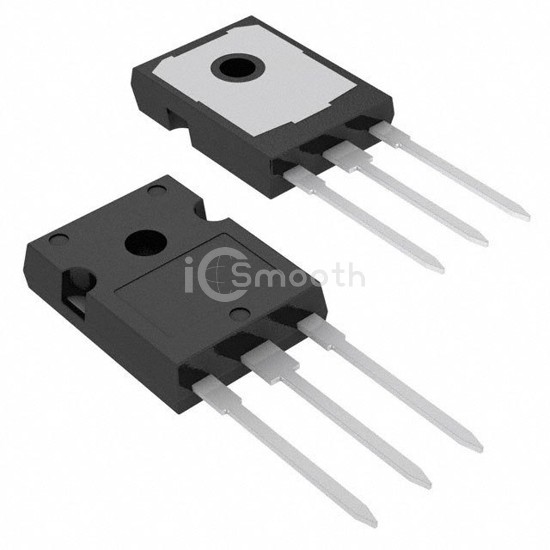

PHW80NQ10T,127

MOSFET N-CH 100V 80A TO247-3

PHW80NQ10T,127 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 100V 80A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 9,393

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	15mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	109 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4720 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	263W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
