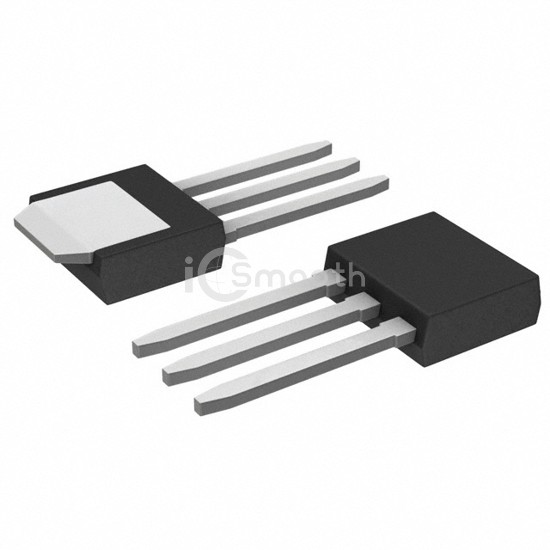

Name: PHU97NQ03LT,127
Brand: NXP USA Inc.
SKU: PHU97NQ03LT,127
Availability: InStock

REF: PHU97NQ03LT,127 NXP USA Inc.

PHU97NQ03LT,127

MOSFET N-CH 25V 75A I-PAK

PHU97NQ03LT,127 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 25V 75A I-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Request a Quote

In Stock: 7,705

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	11.7 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1570 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	107W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-Pak
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
