Name: PHT6N06T,135
Brand: NXP USA Inc.
SKU: PHT6N06T,135
Price: 0.21 USD
Availability: InStock

REF: PHT6N06T,135 NXP USA Inc.

PHT6N06T,135

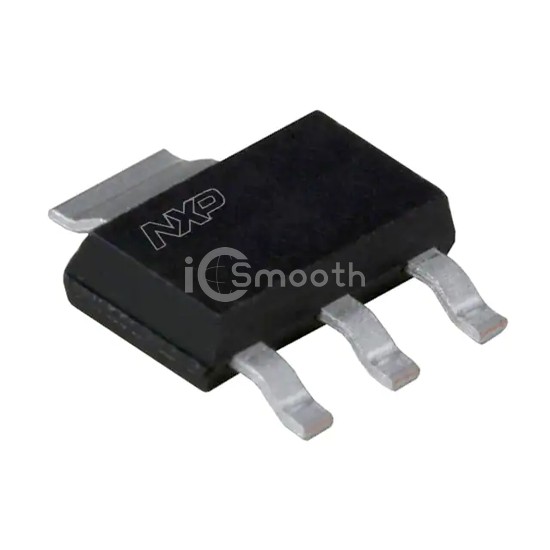

MOSFET N-CH 55V 5.5A SOT223

PHT6N06T,135 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 55V 5.5A SOT223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Request a Quote

In Stock: 14,785

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	5.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	150mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	5.6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	175 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	8.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-73
Package / Case	TO-261-4, TO-261AA
