Name: PHT6N06LT,135
Brand: NXP USA Inc.
SKU: PHT6N06LT,135
Price: 0.21 USD
Availability: InStock

REF: PHT6N06LT,135 NXP USA Inc.

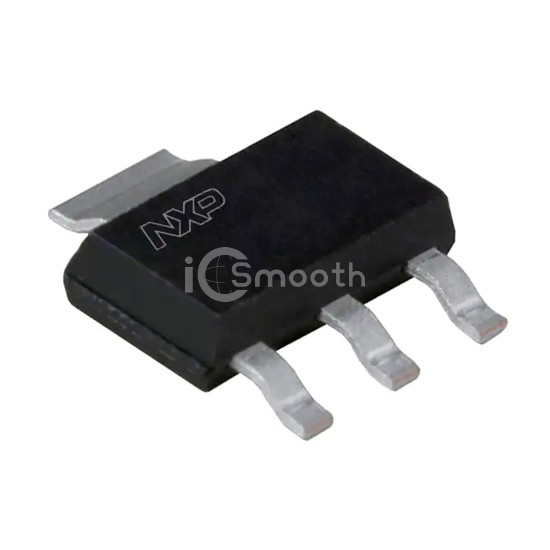

PHT6N06LT,135

MOSFET N-CH 55V 2.5A SOT223

PHT6N06LT,135 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 55V 2.5A SOT223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Request a Quote

In Stock: 342,820

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	150mOhm @ 5A, 5V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	4.5 nC @ 5 V

Vgs (Max)	±13V
Input Capacitance (Ciss) (Max) @ Vds	330 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta), 8.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-73
Package / Case	TO-261-4, TO-261AA
