Name: PHT2NQ10T,135
Brand: NXP USA Inc.
SKU: PHT2NQ10T,135
Availability: InStock

REF: PHT2NQ10T,135 NXP USA Inc.

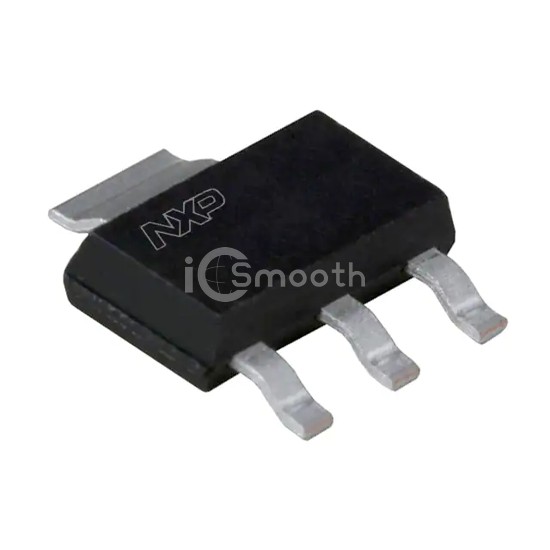

PHT2NQ10T,135

MOSFET N-CH 100V 2.5A SOT223

PHT2NQ10T,135 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 100V 2.5A SOT223. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 5,908

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	430mOhm @ 1.75A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	5.1 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	160 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	6.25W (Tc)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-73
Package / Case	TO-261-4, TO-261AA
