PHP174NQ04LT,127

In Stock: 9,791

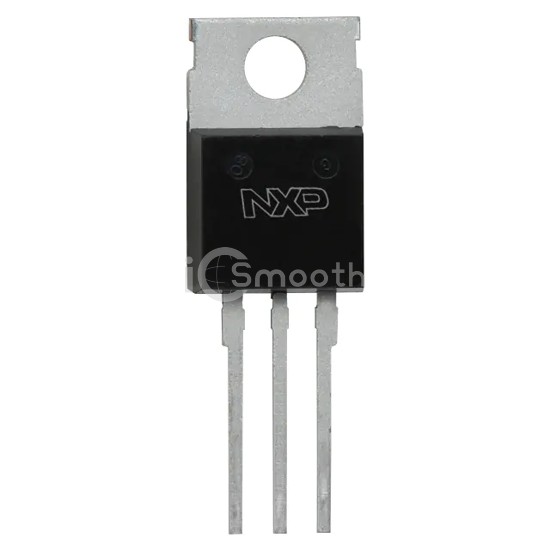

PHP174NQ04LT,127 - NXP USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PHP174NQ04LT,127 NXP USA Inc.
PHP174NQ04LT,127

NXP USA Inc.

MOSFET N-CH 40V 75A TO220AB

PHP174NQ04LT,127 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 40V 75A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 9,791

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs64 nC @ 5 V
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds5345 pF @ 25 V
FET Feature-
Power Dissipation (Max)250W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
