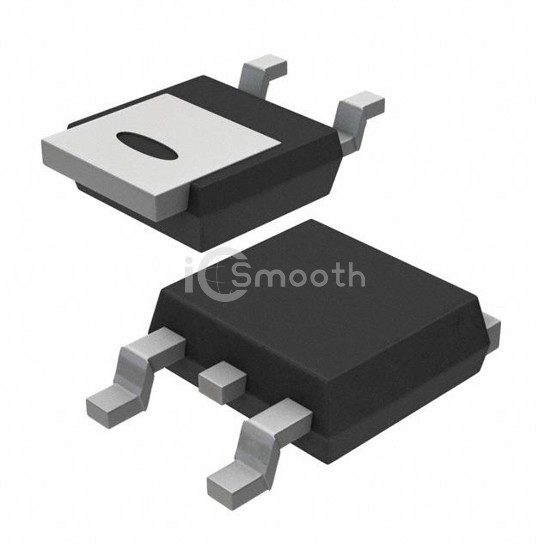

Name: PHD45N03LTA,118
Brand: NXP USA Inc.
SKU: PHD45N03LTA,118
Availability: InStock

REF: PHD45N03LTA,118 NXP USA Inc.

PHD45N03LTA,118

MOSFET N-CH 25V 40A DPAK

PHD45N03LTA,118 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 25V 40A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 6,380

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3.5V, 10V
Rds On (Max) @ Id, Vgs	21mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	700 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	65W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
