Name: PHB78NQ03LT,118
Brand: NXP USA Inc.
SKU: PHB78NQ03LT,118
Availability: InStock

REF: PHB78NQ03LT,118 NXP USA Inc.

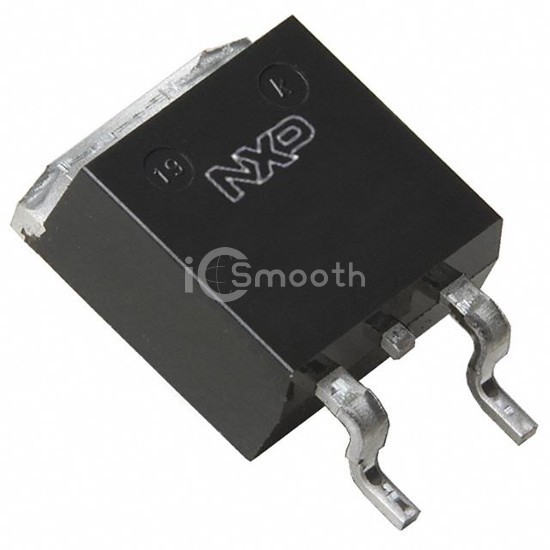

PHB78NQ03LT,118

MOSFET N-CH 25V 40A D2PAK

PHB78NQ03LT,118 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 25V 40A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 8,364

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	970 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	107W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
