Name: PHB38N02LT,118
Brand: NXP USA Inc.
SKU: PHB38N02LT,118
Availability: InStock

REF: PHB38N02LT,118 NXP USA Inc.

PHB38N02LT,118

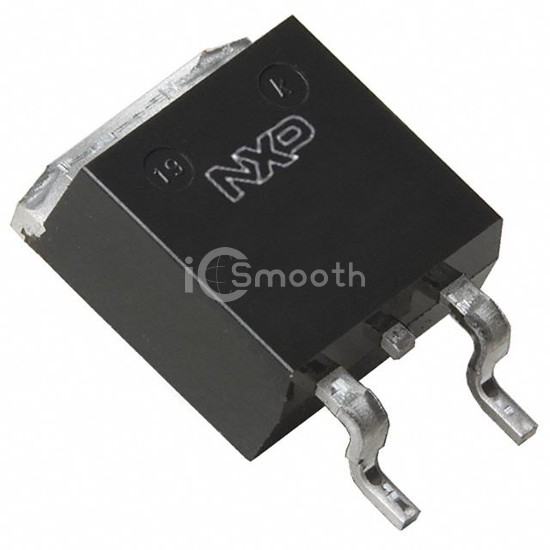

MOSFET N-CH 20V 44.7A D2PAK

PHB38N02LT,118 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 20V 44.7A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 2,106

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	44.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 5V
Rds On (Max) @ Id, Vgs	16mOhm @ 25A, 5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.1 nC @ 5 V

Vgs (Max)	12V
Input Capacitance (Ciss) (Max) @ Vds	800 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	57.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
