Name: PH3430AL,115
Brand: NXP USA Inc.
SKU: PH3430AL,115
Availability: InStock

REF: PH3430AL,115 NXP USA Inc.

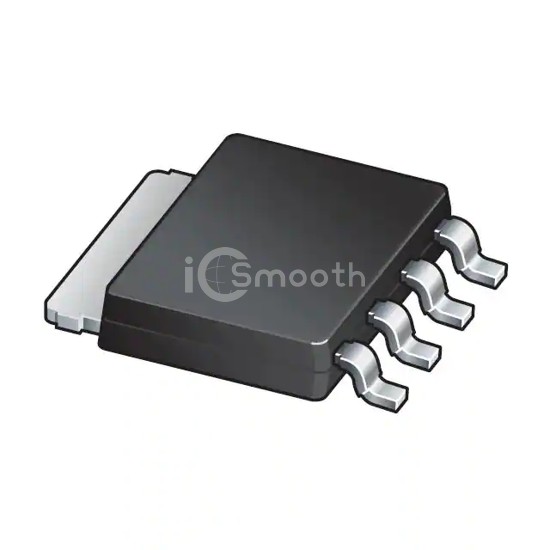

PH3430AL,115

MOSFET N-CH 30V 100A LFPAK56

PH3430AL,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 30V 100A LFPAK56. Key specifications: mounting type Surface Mount, package / case SC-100, SOT-669.

Request a Quote

In Stock: 6,714

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	3.5mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	41 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	2458 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SC-100, SOT-669
