Name: NX5P3201CUKZ
Brand: NXP USA Inc.
SKU: NX5P3201CUKZ
Price: 0.69 USD
Availability: InStock

REF: NX5P3201CUKZ NXP USA Inc.

NX5P3201CUKZ

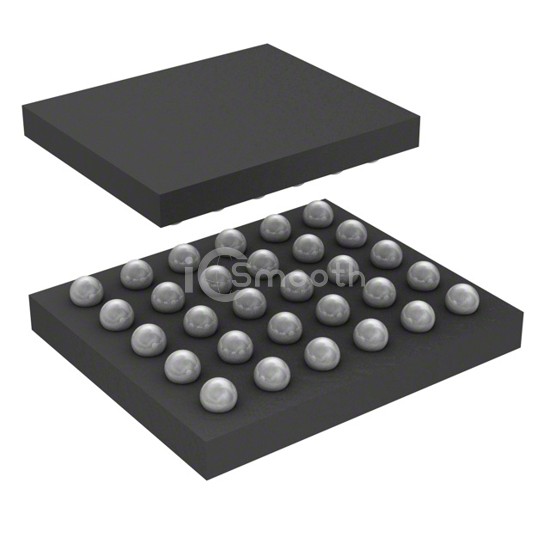

IC PWR SWITCH N-CHAN 1:1 30WLCSP

NX5P3201CUKZ is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 30WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 30-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 2,168

Tiered Pricing USD

4,000+ $0.6891 —

8,000+ $0.6751 -2%

12,000+ $0.6681 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	USB Switch
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	Parallel
Voltage - Load	2.7V ~ 5.5V, 3.4V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	3A, 6A
Rds On (Typ)	8mOhm, 32mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled, Status Flag
Fault Protection	Over Temperature, Over Voltage, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	30-WLCSP (2.26x2.56)
Package / Case	30-UFBGA, WLCSP
