Name: NX5P2553GUZ
Brand: NXP USA Inc.
SKU: NX5P2553GUZ
Price: 0.21 USD
Availability: InStock

REF: NX5P2553GUZ NXP USA Inc.

NX5P2553GUZ

IC PWR SWITCH N-CHAN 1:1 6HXSON

NX5P2553GUZ is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 6HXSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,308

Tiered Pricing USD

4,000+ $0.2133 —

8,000+ $0.2079 -3%

12,000+ $0.2052 -4%

20,000+ $0.2022 -5%

28,000+ $0.2005 -6%

40,000+ $0.1988 -7% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1.5A
Rds On (Typ)	100mOhm
Input Type	Non-Inverting
Features	Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

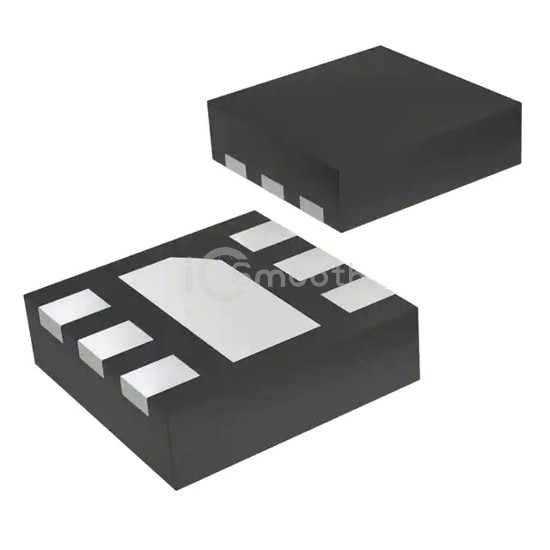

Supplier Device Package	6-HXSON (1.6x1.6)
Package / Case	6-XFDFN Exposed Pad
