Name: NX3L4684TK,132
Brand: NXP USA Inc.
SKU: NX3L4684TK,132
Price: 0.23 USD
Availability: InStock

REF: NX3L4684TK,132 NXP USA Inc.

NX3L4684TK,132

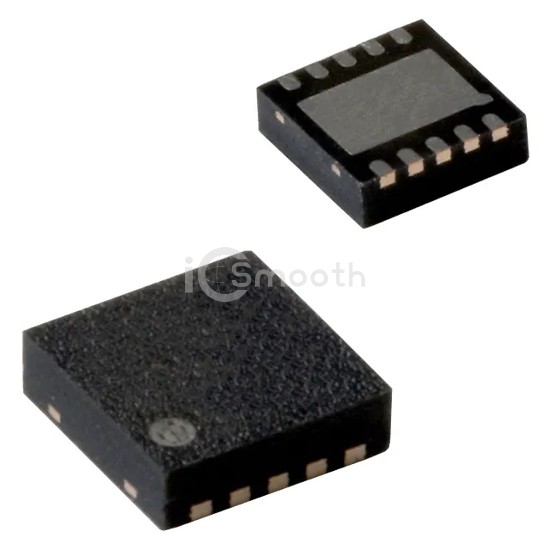

IC ANALOG SWITCH SPDT 10HVSON

NX3L4684TK,132 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT 10HVSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,772

Tiered Pricing USD

2,800+ $0.2304 —

4,200+ $0.2266 -2%

7,000+ $0.2224 -3%

9,800+ $0.2200 -5%

14,000+ $0.2176 -6%

35,000+ $0.2125 -8% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	1.4V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	45ns, 20ns

-3db Bandwidth	20MHz
Charge Injection	50pC
Channel Capacitance (CS(off), CD(off))	35pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-HVSON (3x3)
