Name: NX3L4051HRZ
Brand: NXP USA Inc.
SKU: NX3L4051HRZ
Price: 1.21 USD
Availability: InStock

REF: NX3L4051HRZ NXP USA Inc.

NX3L4051HRZ

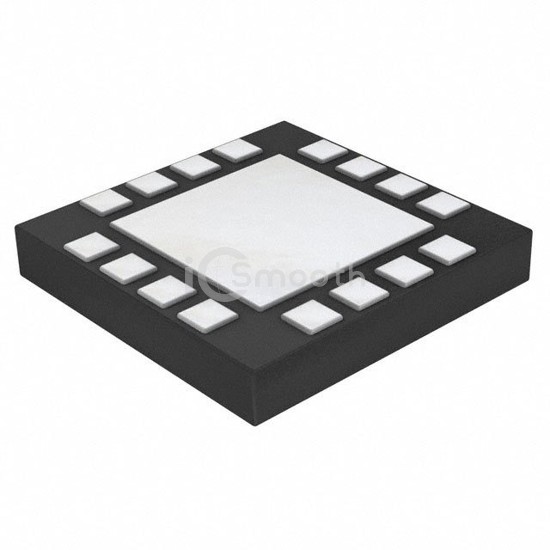

IC ANALOG SWITCH 8CH SGL HXQFN16

NX3L4051HRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH 8CH SGL HXQFN16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-XFQFN Exposed Pad, number of circuits 1.

Request a Quote

In Stock: 1,568

Tiered Pricing USD

1+ $1.2100 —

10+ $0.8760 -28%

25+ $0.7928 -34%

100+ $0.7010 -42%

250+ $0.6573 -46%

500+ $0.6309 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	900mOhm
Channel-to-Channel Matching (ΔRon)	70mOhm
Voltage - Supply, Single (V+)	1.4V ~ 4.3V
Voltage - Supply, Dual (V±)	1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max)	45ns, 25ns

-3db Bandwidth	15MHz
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	35pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-XFQFN Exposed Pad
Supplier Device Package	16-HXQFN (3x3)
