Name: NX3L2267SGU,115
Brand: NXP USA Inc.
SKU: NX3L2267SGU,115
Price: 0.89 USD
Availability: InStock

REF: NX3L2267SGU,115 NXP USA Inc.

NX3L2267SGU,115

NXP USA Inc.

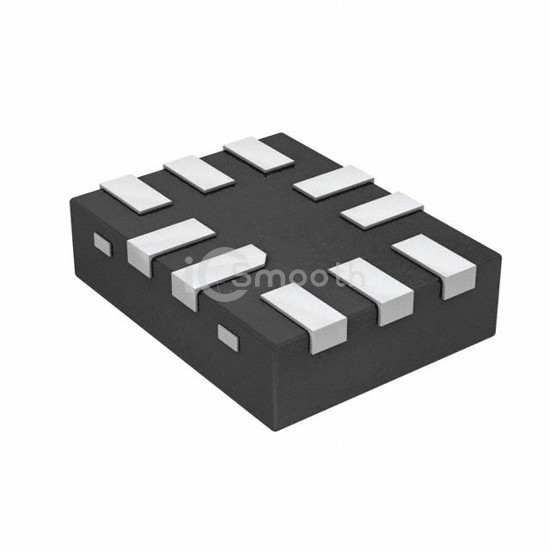

IC ANALOG SWITCH SPDT 10XQFN

NX3L2267SGU,115 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT 10XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-XFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,952

Tiered Pricing USD

1+ $0.8900 —

10+ $0.6400 -28%

25+ $0.5768 -35%

100+ $0.5072 -43%

250+ $0.4740 -47%

500+ $0.4539 -49%

1,000+ $0.4374 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	90mOhm
Voltage - Supply, Single (V+)	1.4V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 20ns

-3db Bandwidth	60MHz
Charge Injection	37pC
Channel Capacitance (CS(off), CD(off))	35pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-XFQFN
Supplier Device Package	10-XQFN (1.4x1.8)
