Name: NX3L2267GM,132
Brand: NXP USA Inc.
SKU: NX3L2267GM,132
Price: 0.21 USD
Availability: InStock

REF: NX3L2267GM,132 NXP USA Inc.

NX3L2267GM,132

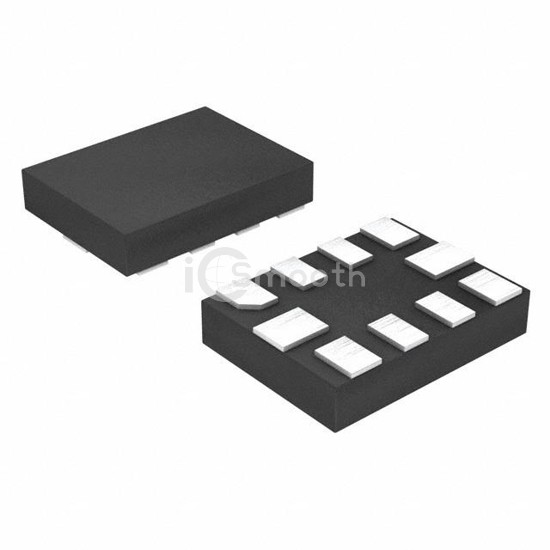

IC ANALOG SWITCH SPDT 10XQFN

NX3L2267GM,132 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT 10XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-XFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,816

Tiered Pricing USD

5,000+ $0.2114 —

10,000+ $0.2064 -2%

15,000+ $0.2039 -4%

25,000+ $0.2011 -5%

35,000+ $0.1994 -6%

50,000+ $0.1979 -6% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	90mOhm
Voltage - Supply, Single (V+)	1.4V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 20ns

-3db Bandwidth	60MHz
Charge Injection	37pC
Channel Capacitance (CS(off), CD(off))	35pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-XFQFN
Supplier Device Package	10-XQFN (1.55x2)
