Name: NX3L1T53GM,125
Brand: NXP USA Inc.
SKU: NX3L1T53GM,125
Price: 0.77 USD
Availability: InStock

REF: NX3L1T53GM,125 NXP USA Inc.

NX3L1T53GM,125

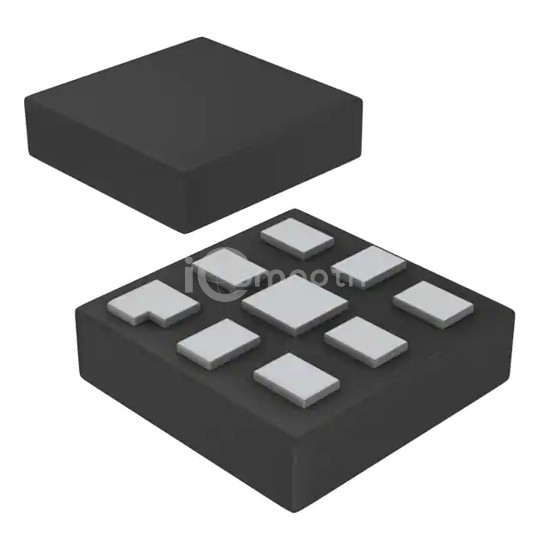

IC ANALOG SWITCH SPDT 8XQFN

NX3L1T53GM,125 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT 8XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-XFQFN Exposed Pad, number of circuits 1.

Datasheet Request a Quote

In Stock: 49

Tiered Pricing USD

1+ $0.7700 —

10+ $0.5500 -29%

25+ $0.4944 -36%

100+ $0.4332 -44%

250+ $0.4041 -48%

500+ $0.3866 -50%

1,000+ $0.3721 -52% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	20mOhm
Voltage - Supply, Single (V+)	1.4V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 20ns

-3db Bandwidth	60MHz
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	35pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-XFQFN Exposed Pad
Supplier Device Package	8-XQFNU (1.6x1.6)
