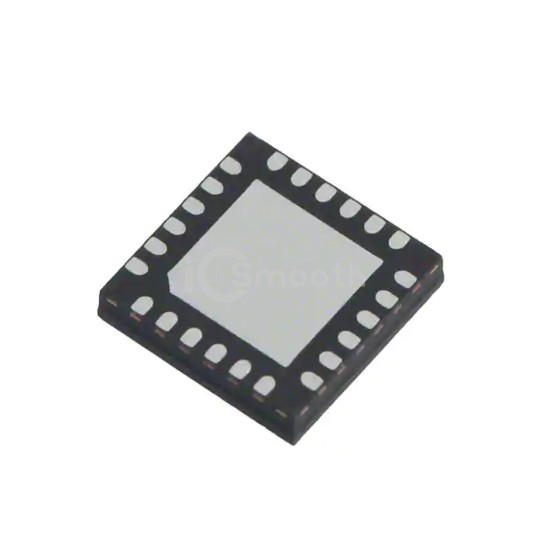

Name: MC35XS3400CHFKR2
Brand: NXP USA Inc.
SKU: MC35XS3400CHFKR2
Availability: InStock

REF: MC35XS3400CHFKR2 NXP USA Inc.

MC35XS3400CHFKR2

IC PWR SWITCH N-CHAN 1:4 24PQFN

MC35XS3400CHFKR2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:4 24PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 24-PowerQFN.

Datasheet Request a Quote

In Stock: 7,621

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:4
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	6V ~ 20V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	6A
Rds On (Typ)	35mOhm (Max)
Input Type	-
Features	Internal PWM, Slew Rate Controlled, Watchdog Timer
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-PQFN (12x12)
Package / Case	24-PowerQFN
