Name: MC25XS6300EK
Brand: NXP USA Inc.
SKU: MC25XS6300EK
Price: 7.76 USD
Availability: InStock

REF: MC25XS6300EK NXP USA Inc.

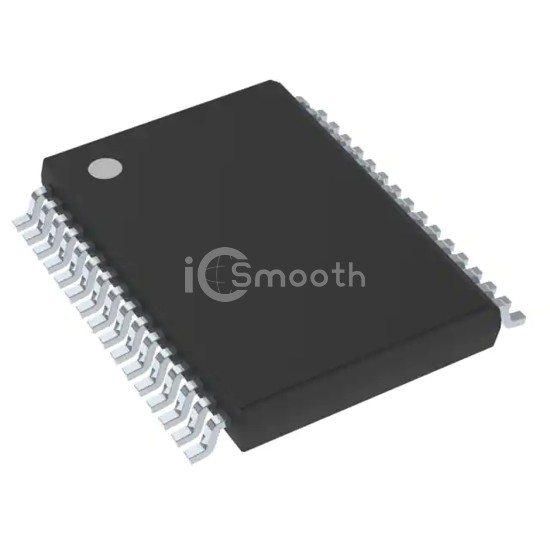

MC25XS6300EK

IC PWR SWITCH HIGH SIDE 32HSOP

MC25XS6300EK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH HIGH SIDE 32HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 40

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	-
Output Configuration	High Side
Output Type	-
Interface	SPI
Voltage - Load	7V ~ 18V
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V

Current - Output (Max)	3.8A
Rds On (Typ)	25mOhm
Input Type	-
Features	Status Flag
Fault Protection	Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	32-HSOP
Package / Case	32-SSOP (0.295", 7.50mm Width) Exposed Pad
