Name: MC22XS4200BEK
Brand: NXP USA Inc.
SKU: MC22XS4200BEK
Price: 9.37 USD
Availability: InStock

REF: MC22XS4200BEK NXP USA Inc.

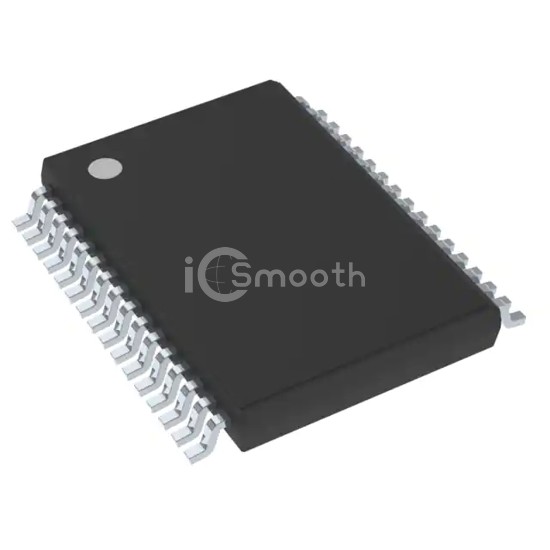

MC22XS4200BEK

IC PWR SWITCH N-CHAN 1:2 32HSOP

MC22XS4200BEK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:2 32HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 8

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:2
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	8V ~ 36V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	3A
Rds On (Typ)	-
Input Type	-
Features	Slew Rate Controlled
Fault Protection	Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	32-HSOP
Package / Case	32-SSOP (0.295", 7.50mm Width) Exposed Pad
