Name: MC17XSF500BEK
Brand: NXP USA Inc.
SKU: MC17XSF500BEK
Availability: InStock

REF: MC17XSF500BEK NXP USA Inc.

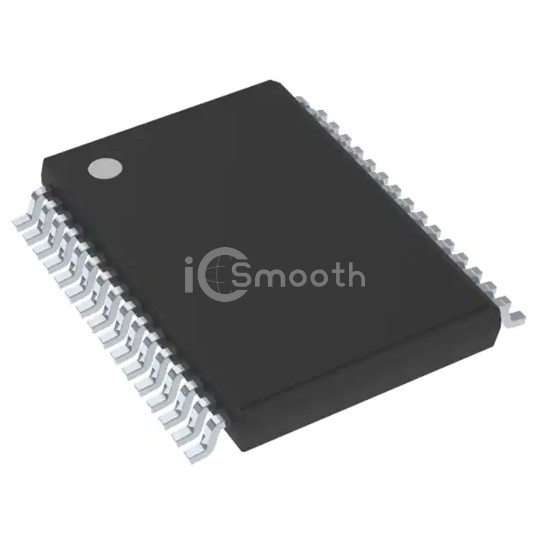

MC17XSF500BEK

IC PWR SWITCH N-CHAN 1:1 32HSOP

MC17XSF500BEK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 32HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,255

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	6
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	18V (Max)
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V

Current - Output (Max)	5.5A, 11A
Rds On (Typ)	7mOhm, 17mOhm
Input Type	-
Features	Internal PWM
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	32-HSOP
Package / Case	32-SSOP (0.295", 7.50mm Width) Exposed Pad
