Name: MC10XS3535DHFK
Brand: NXP USA Inc.
SKU: MC10XS3535DHFK
Availability: InStock

REF: MC10XS3535DHFK NXP USA Inc.

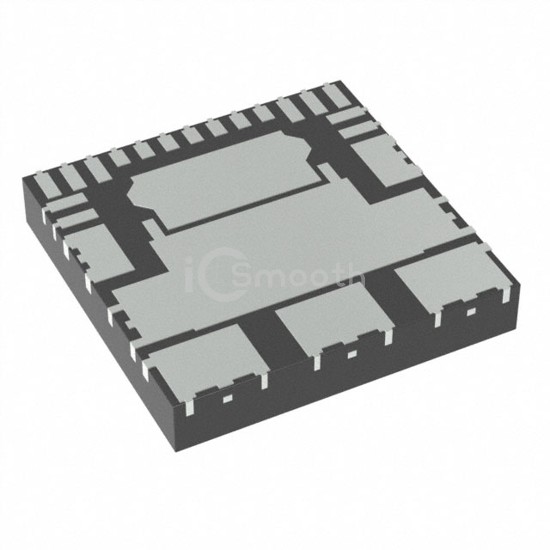

MC10XS3535DHFK

IC PWR SWITCH N-CHAN 1:6 24PQFN

MC10XS3535DHFK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:6 24PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 24-PowerQFN.

Datasheet Request a Quote

In Stock: 4,898

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	6
Ratio - Input:Output	1:6
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	7V ~ 20V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	-
Rds On (Typ)	10mOhm (Max), 35mOhm (Max)
Input Type	-
Features	Watchdog Timer
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	24-PQFN (12x12)
Package / Case	24-PowerQFN
