Name: MC08XS6421CEKR2
Brand: NXP USA Inc.
SKU: MC08XS6421CEKR2
Price: 5.36 USD
Availability: InStock

REF: MC08XS6421CEKR2 NXP USA Inc.

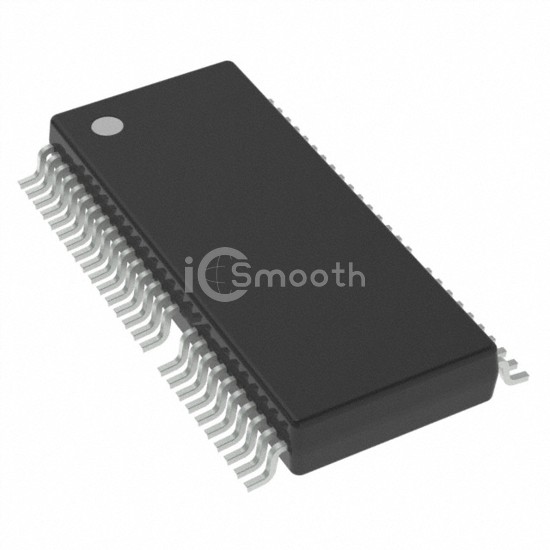

MC08XS6421CEKR2

NXP USA Inc.

HIGH-SIDE SWITCH 12V DUAL 8MOHMS

MC08XS6421CEKR2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. HIGH-SIDE SWITCH 12V DUAL 8MOHMS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 54-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,521

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	7V ~ 18V
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V

Current - Output (Max)	5.5A, 11A
Rds On (Typ)	8mOhm, 21mOhm
Input Type	CMOS
Features	-
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	54-HSOP
Package / Case	54-SSOP (0.295", 7.50mm Width) Exposed Pad
