Name: MC07XSC200EK
Brand: NXP USA Inc.
SKU: MC07XSC200EK
Availability: InStock

REF: MC07XSC200EK NXP USA Inc.

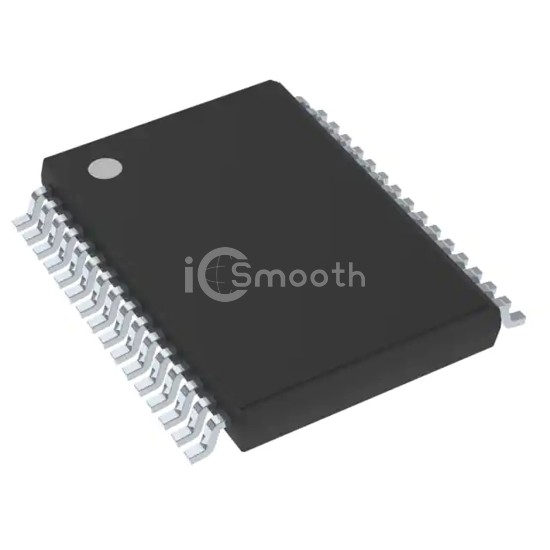

MC07XSC200EK

IC PWR SWITCH N-CHAN 1:1 32HSOP

MC07XSC200EK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 32HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 1,241

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	6V ~ 20V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	26A
Rds On (Typ)	7mOhm (Max)
Input Type	-
Features	Slew Rate Controlled, Watchdog Timer
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	32-HSOP
Package / Case	32-SSOP (0.295", 7.50mm Width) Exposed Pad
