Name: MC06XS4200FK
Brand: NXP USA Inc.
SKU: MC06XS4200FK
Availability: InStock

REF: MC06XS4200FK NXP USA Inc.

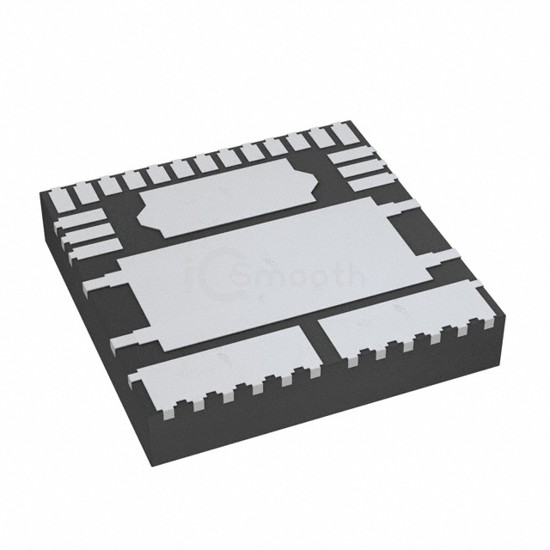

MC06XS4200FK

IC PWR SWITCH N-CHAN 1:1 23PQFN

MC06XS4200FK is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 23PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 23-PowerQFN.

Datasheet Request a Quote

In Stock: 1,450

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	8V ~ 36V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	9A
Rds On (Typ)	6mOhm (Max)
Input Type	-
Features	Internal PWM, Slew Rate Controlled
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	23-PQFN (12x12)
Package / Case	23-PowerQFN
