Name: HEF4067BP,652
Brand: NXP USA Inc.
SKU: HEF4067BP,652
Availability: InStock

REF: HEF4067BP,652 NXP USA Inc.

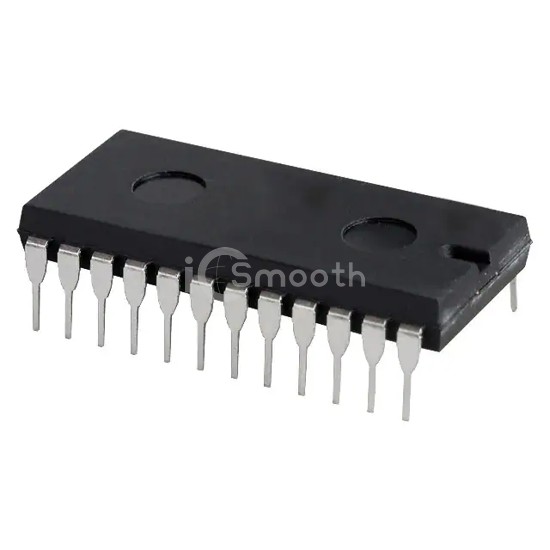

HEF4067BP,652

IC MUX/DEMUX 4X16 24DIP

HEF4067BP,652 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC MUX/DEMUX 4X16 24DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 24-DIP (0.600", 15.24mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 4,147

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	16:1
Number of Circuits	1
On-State Resistance (Max)	155Ohm
Channel-to-Channel Matching (ΔRon)	5Ohm
Voltage - Supply, Single (V+)	3V ~ 15V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	70MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	7.5pF
Current - Leakage (IS(off)) (Max)	200nA
Crosstalk	-50dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	24-DIP (0.600", 15.24mm)
Supplier Device Package	24-DIP
