Name: BUK9E15-60E,127
Brand: NXP USA Inc.
SKU: BUK9E15-60E,127
Price: 0.37 USD
Availability: InStock

REF: BUK9E15-60E,127 NXP USA Inc.

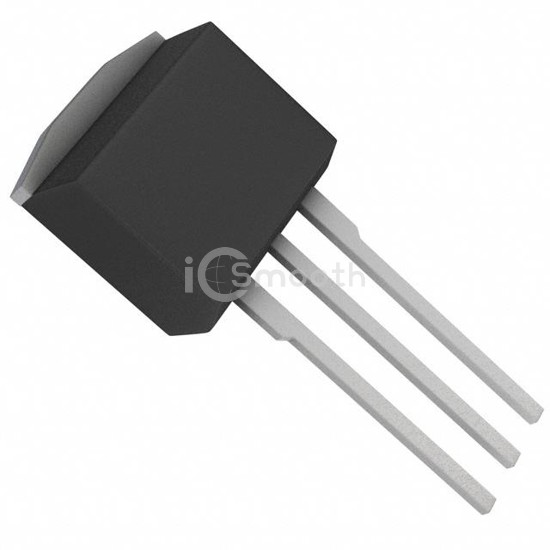

BUK9E15-60E,127

NXP USA Inc.

MOSFET N-CH 60V 54A I2PAK

BUK9E15-60E,127 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 60V 54A I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Request a Quote

In Stock: 4,364

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	54A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	13mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	20.5 nC @ 5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	2651 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	96W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
