Name: BUK9107-40ATC,118
Brand: NXP USA Inc.
SKU: BUK9107-40ATC,118
Price: 1.04 USD
Availability: InStock

REF: BUK9107-40ATC,118 NXP USA Inc.

BUK9107-40ATC,118

NXP USA Inc.

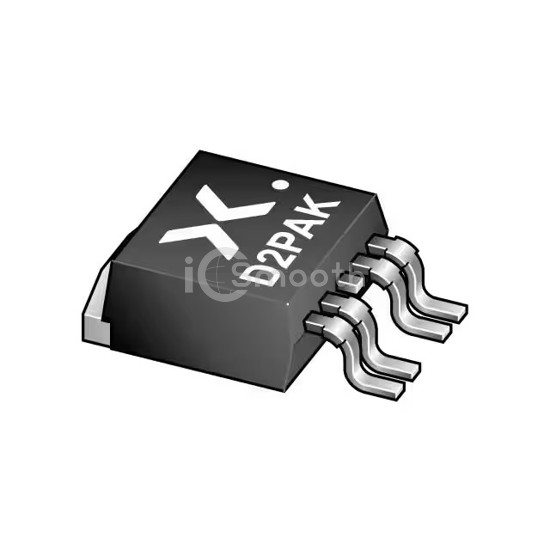

BUK9107-40ATC - D2PAK

BUK9107-40ATC,118 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. BUK9107-40ATC - D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB.

Datasheet Request a Quote

In Stock: 8,578

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	5836 pF @ 25 V
FET Feature	Temperature Sensing Diode
Power Dissipation (Max)	272W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-426
Package / Case	TO-263-5, D²Pak (4 Leads + Tab), TO-263BB
