Name: BUK7Y25-80E/CX
Brand: NXP USA Inc.
SKU: BUK7Y25-80E/CX
Availability: InStock

REF: BUK7Y25-80E/CX NXP USA Inc.

BUK7Y25-80E/CX

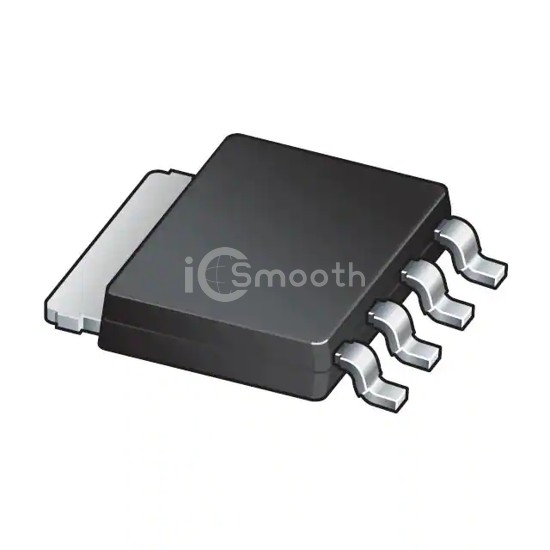

MOSFET N-CH 80V 39A LFPAK56

BUK7Y25-80E/CX is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 80V 39A LFPAK56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-100, SOT-669.

Request a Quote

In Stock: 4,622

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	39A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	25mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	25.9 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	95W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SC-100, SOT-669
