Name: BUK7Y08-40B/C,115
Brand: NXP USA Inc.
SKU: BUK7Y08-40B/C,115
Availability: InStock

REF: BUK7Y08-40B/C,115 NXP USA Inc.

BUK7Y08-40B/C,115

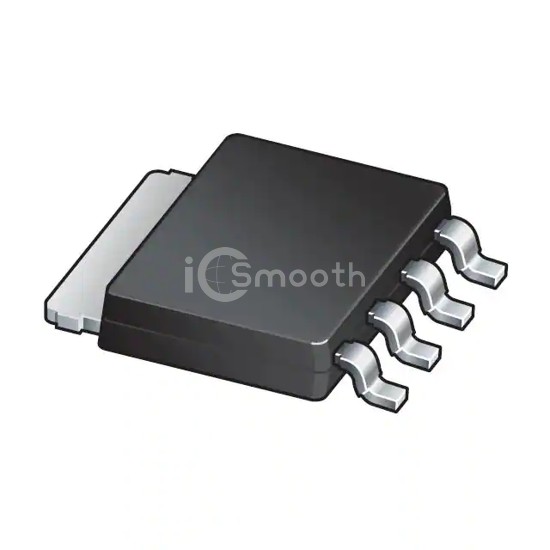

MOSFET N-CH 40V 75A LFPAK56

BUK7Y08-40B/C,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 40V 75A LFPAK56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-100, SOT-669.

Datasheet Request a Quote

In Stock: 4,139

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	36.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2040 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	105W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SC-100, SOT-669
