BFU690F,115

In Stock: 56,413

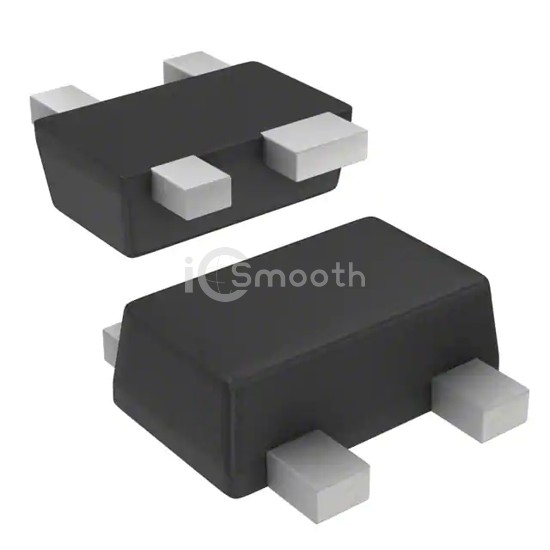

BFU690F,115 - NXP USA Inc. - Transistors - Bipolar (BJT) - RF
REF: BFU690F,115 NXP USA Inc.
BFU690F,115

NXP USA Inc.

RF TRANS NPN 5.5V 18GHZ 4DFP

BFU690F,115 is a Transistors - Bipolar (BJT) - RF manufactured by NXP USA Inc.. RF TRANS NPN 5.5V 18GHZ 4DFP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-343F, current - collector (ic) (max) 100mA.

Datasheet Request a Quote

In Stock: 56,413

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)5.5V
Frequency - Transition18GHz
Noise Figure (dB Typ @ f)0.6dB ~ 0.7dG @ 1.5GHz ~ 2.4GHz
Gain15.5dB ~ 18.5dB
Power - Max230mW
DC Current Gain (hFE) (Min) @ Ic, Vce90 @ 20mA, 2V
Current - Collector (Ic) (Max)100mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-343F
Supplier Device Package4-DFP
