BFR505T,115

In Stock: 2,405

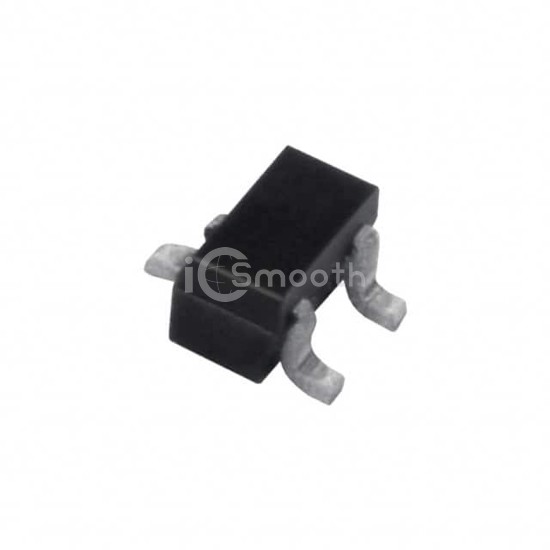

BFR505T,115 - NXP USA Inc. - Transistors - Bipolar (BJT) - RF
REF: BFR505T,115 NXP USA Inc.
BFR505T,115

NXP USA Inc.

RF TRANS NPN 15V 9GHZ SC75

BFR505T,115 is a Transistors - Bipolar (BJT) - RF manufactured by NXP USA Inc.. RF TRANS NPN 15V 9GHZ SC75. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-75, SOT-416, current - collector (ic) (max) 18mA.

Datasheet Request a Quote

In Stock: 2,405

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)15V
Frequency - Transition9GHz
Noise Figure (dB Typ @ f)1.2dB ~ 2.1dB @ 900MHz
Gain-
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 6V
Current - Collector (Ic) (Max)18mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-75, SOT-416
Supplier Device PackageSC-75
