BFG540W/X,115

In Stock: 1,973

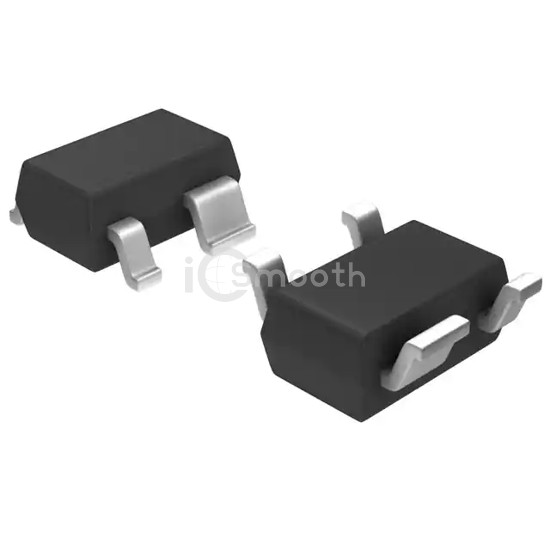

BFG540W/X,115 - NXP USA Inc. - Transistors - Bipolar (BJT) - RF
REF: BFG540W/X,115 NXP USA Inc.
BFG540W/X,115

NXP USA Inc.

RF TRANS NPN 15V 9GHZ CMPAK-4

BFG540W/X,115 is a Transistors - Bipolar (BJT) - RF manufactured by NXP USA Inc.. RF TRANS NPN 15V 9GHZ CMPAK-4. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case SC-82A, SOT-343, current - collector (ic) (max) 120mA.

Datasheet Request a Quote

In Stock: 1,973

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)15V
Frequency - Transition9GHz
Noise Figure (dB Typ @ f)1.3dB ~ 2.4dB @ 900MHz
Gain-
Power - Max500mW
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 40mA, 8V
Current - Collector (Ic) (Max)120mA
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-82A, SOT-343
Supplier Device PackageCMPAK-4
