BFG505/X,235

In Stock: 6,743

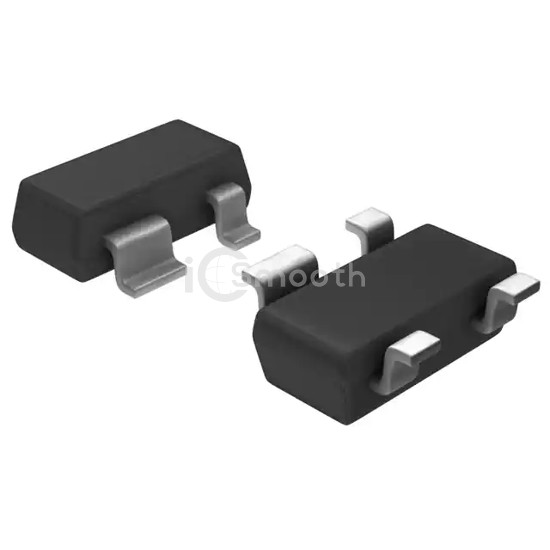

BFG505/X,235 - NXP USA Inc. - Transistors - Bipolar (BJT) - RF
REF: BFG505/X,235 NXP USA Inc.
BFG505/X,235

NXP USA Inc.

RF TRANS NPN 15V 9GHZ SOT143B

BFG505/X,235 is a Transistors - Bipolar (BJT) - RF manufactured by NXP USA Inc.. RF TRANS NPN 15V 9GHZ SOT143B. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-253-4, TO-253AA, current - collector (ic) (max) 18mA.

Datasheet Request a Quote

In Stock: 6,743

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)15V
Frequency - Transition9GHz
Noise Figure (dB Typ @ f)1.2dB ~ 1.9dB @ 900MHz ~ 2GHz
Gain-
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 6V
Current - Collector (Ic) (Max)18mA
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-253-4, TO-253AA
Supplier Device PackageSOT-143B
