Name: BFG25AW/X,115
Brand: NXP USA Inc.
SKU: BFG25AW/X,115
Availability: InStock

REF: BFG25AW/X,115 NXP USA Inc.

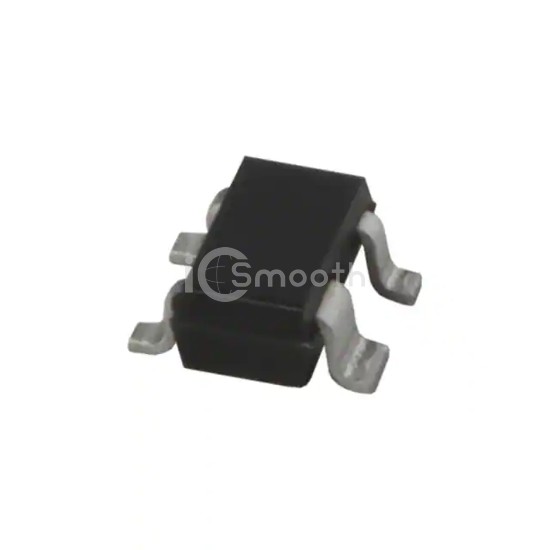

BFG25AW/X,115

RF TRANS NPN 5V 5GHZ 4SO

BFG25AW/X,115 is a Transistors - Bipolar (BJT) - RF manufactured by NXP USA Inc.. RF TRANS NPN 5V 5GHZ 4SO. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case SOT-343 Reverse Pinning, current - collector (ic) (max) 6.5mA.

Datasheet Request a Quote

In Stock: 3,928

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	5V
Frequency - Transition	5GHz
Noise Figure (dB Typ @ f)	1.9dB ~ 2dB @ 1GHz
Gain	-
Power - Max	500mW

DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 500µA, 1V
Current - Collector (Ic) (Max)	6.5mA
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-343 Reverse Pinning
Supplier Device Package	4-SO
