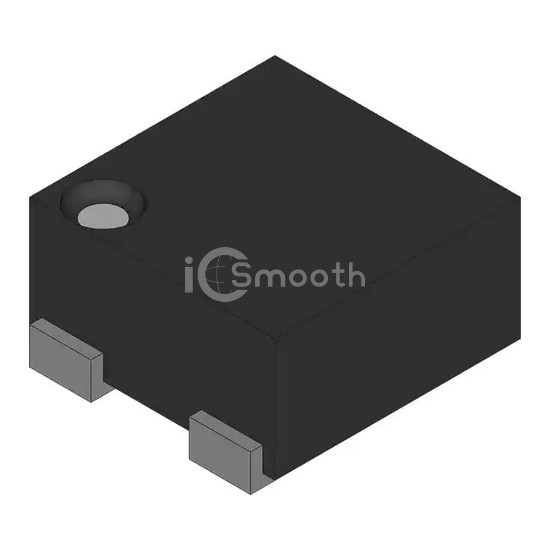

Name: 74LVC1G384GXH
Brand: NXP USA Inc.
SKU: 74LVC1G384GXH
Price: 0.24 USD
Availability: InStock

REF: 74LVC1G384GXH NXP USA Inc.

74LVC1G384GXH

74LVC1G384 - BILATERAL SWITCH

74LVC1G384GXH is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. 74LVC1G384 - BILATERAL SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 4-XFDFN Exposed Pad, number of circuits 1.

Datasheet Request a Quote

In Stock: 840,474

Tiered Pricing USD

1+ $0.2400 —

10+ $0.1650 -31%

25+ $0.1460 -39%

100+ $0.1250 -48%

250+ $0.1149 -52%

500+ $0.1089 -55%

1,000+ $0.1039 -57%

2,500+ $0.1011 -58% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	4.2ns, 5ns

-3db Bandwidth	500MHz
Charge Injection	7.5pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	5µA
Crosstalk	-
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	4-XFDFN Exposed Pad
Supplier Device Package	5-X2SON (0.80x0.80)
