Name: 74HCT4067N,112
Brand: NXP USA Inc.
SKU: 74HCT4067N,112
Price: 3.75 USD
Availability: InStock

REF: 74HCT4067N,112 NXP USA Inc.

74HCT4067N,112

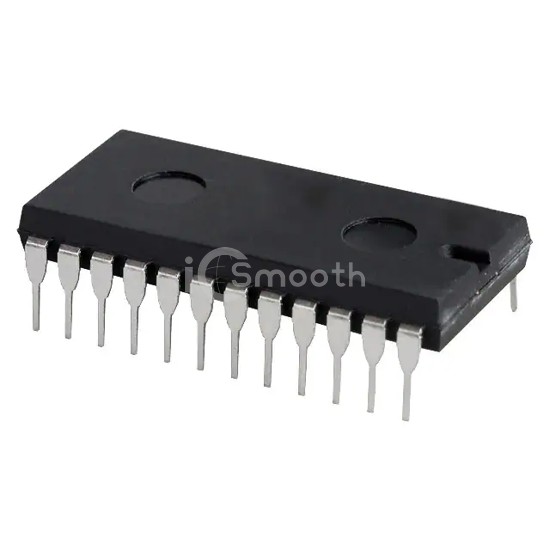

IC MUX/DEMUX 1X16 24DIP

74HCT4067N,112 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC MUX/DEMUX 1X16 24DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), package / case 24-DIP (0.600", 15.24mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 2,777

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	16:1
Number of Circuits	1
On-State Resistance (Max)	120Ohm
Channel-to-Channel Matching (ΔRon)	6Ohm
Voltage - Supply, Single (V+)	4.5V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	65ns, 60ns

-3db Bandwidth	100MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	3.5pF
Current - Leakage (IS(off)) (Max)	800nA
Crosstalk	-
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	24-DIP (0.600", 15.24mm)
Supplier Device Package	24-DIP
