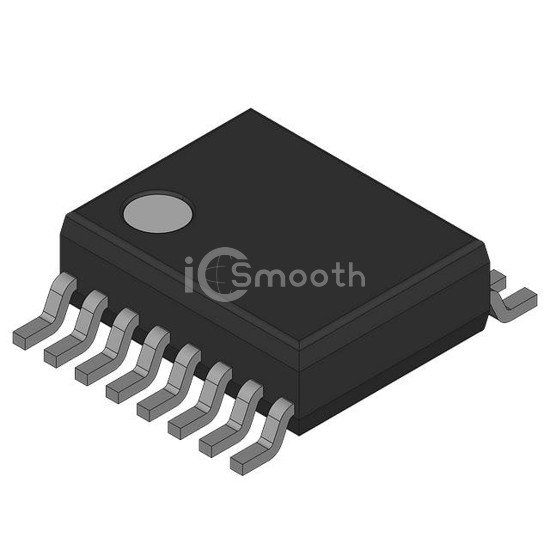

Name: 74HCT4053DB,118
Brand: NXP USA Inc.
SKU: 74HCT4053DB,118
Price: 0.82 USD
Availability: InStock

REF: 74HCT4053DB,118 NXP USA Inc.

74HCT4053DB,118

NXP USA Inc.

SPDT, 3 FUNC, 1 CHANNEL, CMOS, P

74HCT4053DB,118 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. SPDT, 3 FUNC, 1 CHANNEL, CMOS, P. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-SSOP (0.209", 5.30mm Width), number of circuits 3.

Datasheet Request a Quote

In Stock: 12,000

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	120Ohm
Channel-to-Channel Matching (ΔRon)	6Ohm
Voltage - Supply, Single (V+)	4.5V ~ 5.5V
Voltage - Supply, Dual (V±)	±1V ~ 5V
Switch Time (Ton, Toff) (Max)	34ns, 31ns

-3db Bandwidth	170MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	3.5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-60dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SSOP (0.209", 5.30mm Width)
Supplier Device Package	16-SSOP
