Name: 2N7002BKT,115
Brand: NXP USA Inc.
SKU: 2N7002BKT,115
Availability: InStock

REF: 2N7002BKT,115 NXP USA Inc.

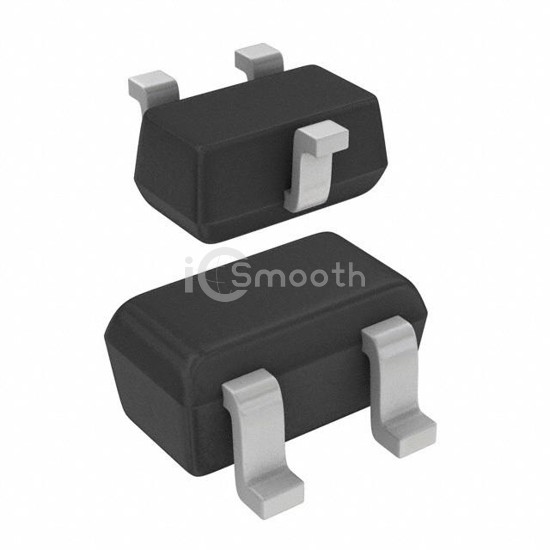

2N7002BKT,115

MOSFET N-CH 60V 290MA SC75

2N7002BKT,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 60V 290MA SC75. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 5,049

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	290mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	260mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75
Package / Case	SC-75, SOT-416
