Name: PMV100XPEA215
Brand: NXP Semiconductors
SKU: PMV100XPEA215
Availability: InStock

REF: PMV100XPEA215 NXP Semiconductors

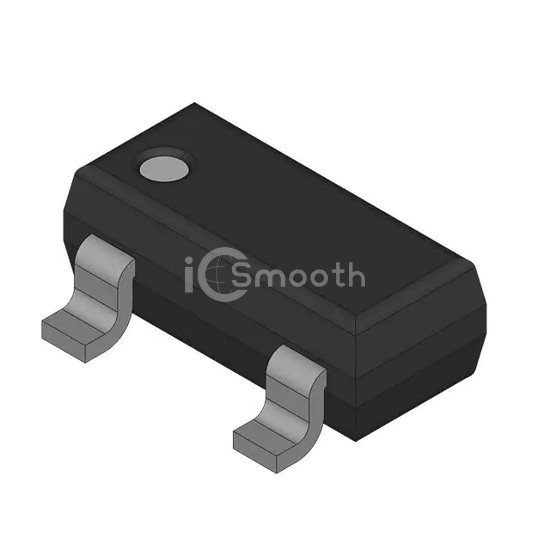

PMV100XPEA215

NEXPERIA PMV100 - N-CHANNEL MOSF

PMV100XPEA215 is a Transistors - FETs, MOSFETs - Single manufactured by NXP Semiconductors. NEXPERIA PMV100 - N-CHANNEL MOSF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 9,114

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	128mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id	1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	386 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	463mW (Ta), 4.45W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
