BUK7Y20-30B,115

In Stock: 3,559

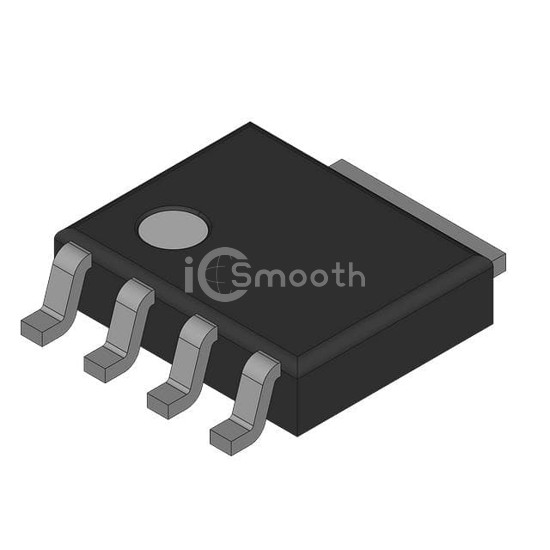

BUK7Y20-30B,115 - NXP Semiconductors - Transistors - FETs, MOSFETs - Single
REF: BUK7Y20-30B,115 NXP Semiconductors
BUK7Y20-30B,115

NXP Semiconductors

MOSFET N-CH 30V 39.5A LFPAK56

BUK7Y20-30B,115 is a Transistors - FETs, MOSFETs - Single manufactured by NXP Semiconductors. MOSFET N-CH 30V 39.5A LFPAK56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-100, SOT-669.

Datasheet Request a Quote

In Stock: 3,559

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C39.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs20mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs11.2 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds688 pF @ 25 V
FET Feature-
Power Dissipation (Max)59W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSC-100, SOT-669
