Name: BUK6C2R1-55C,118
Brand: NXP Semiconductors
SKU: BUK6C2R1-55C,118
Price: 1.25 USD
Availability: InStock

REF: BUK6C2R1-55C,118 NXP Semiconductors

BUK6C2R1-55C,118

NXP Semiconductors

NEXPERIA BUK6C2R1-55C - 228A, 55

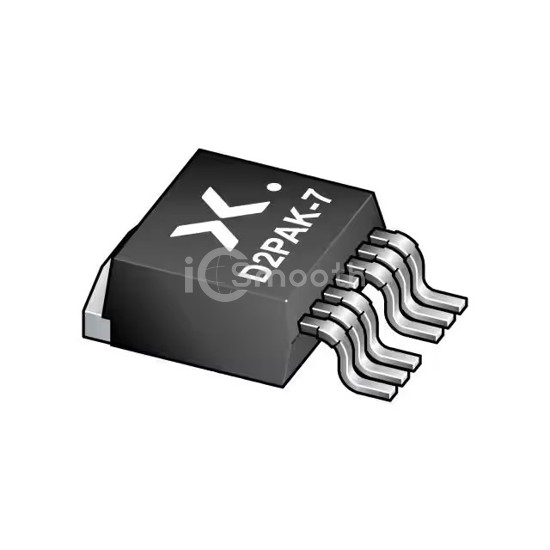

BUK6C2R1-55C,118 is a Transistors - FETs, MOSFETs - Single manufactured by NXP Semiconductors. NEXPERIA BUK6C2R1-55C - 228A, 55. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 538

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	228A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.3mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	253 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	16000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
