ADT002-10E TR

In Stock: 4,325

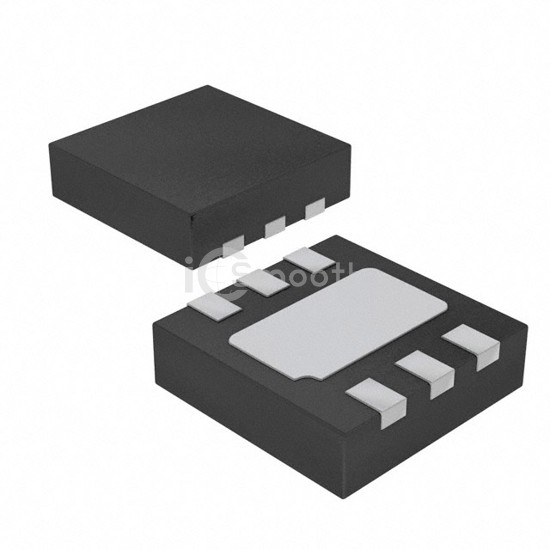

ADT002-10E TR - NVE Corp/Sensor Products - Position Sensors - Angle, Linear Position Measuring
REF: ADT002-10E TR NVE Corp/Sensor Products
ADT002-10E TR

NVE Corp/Sensor Products

SENSOR ROTARY 360DEG SOLDER PAD

ADT002-10E TR is a Position Sensors - Angle, Linear Position Measuring manufactured by NVE Corp/Sensor Products. SENSOR ROTARY 360DEG SOLDER PAD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.45V ~ 5.5V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,325

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputDigital
Output SignalLogic
Actuator TypeExternal Magnet, Included
Linearity±3°
Resistance-
Resistance Tolerance-
Voltage - Supply2.45V ~ 5.5V
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-40°C ~ 125°C
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-TDFN (2.5x2.5)
