ADT001-10E

In Stock: 5,105

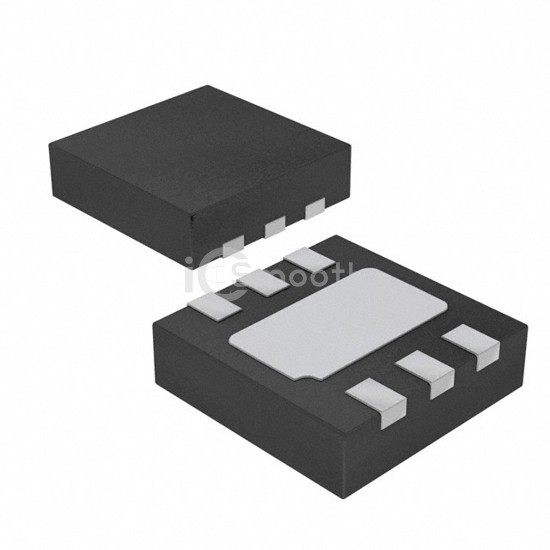

ADT001-10E - NVE Corp/Sensor Products - Position Sensors - Angle, Linear Position Measuring
REF: ADT001-10E NVE Corp/Sensor Products
ADT001-10E

NVE Corp/Sensor Products

SENSOR ROTARY 360DEG SOLDER PAD

ADT001-10E is a Position Sensors - Angle, Linear Position Measuring manufactured by NVE Corp/Sensor Products. SENSOR ROTARY 360DEG SOLDER PAD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.45V ~ 5.5V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,105

Tiered Pricing USD
1+ $6.2600 —
5+ $5.6320 -10%
10+ $5.3990 -14%
25+ $5.1220 -18%
50+ $4.9326 -21%
100+ $4.7590 -24%
500+ $4.4096 -30%
1,000+ $4.2794 -32% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputDigital
Output SignalLogic
Actuator TypeExternal Magnet, Included
Linearity±3°
Resistance-
Resistance Tolerance-
Voltage - Supply2.45V ~ 5.5V
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-40°C ~ 125°C
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-TDFN (2.5x2.5)
