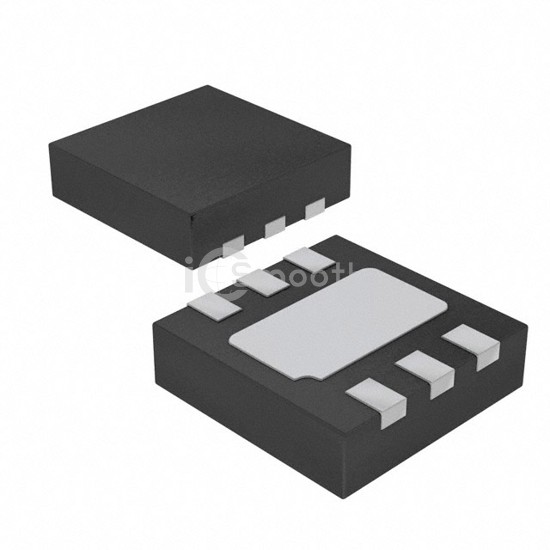

AAT006-10E

In Stock: 556
AAT006-10E - NVE Corp/Sensor Products - Position Sensors - Angle, Linear Position Measuring
REF: AAT006-10E NVE Corp/Sensor Products
AAT006-10E

NVE Corp/Sensor Products

SENSOR ANGLE 360DEG SMD

AAT006-10E is a Position Sensors - Angle, Linear Position Measuring manufactured by NVE Corp/Sensor Products. SENSOR ANGLE 360DEG SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 124°C, voltage - supply 5.5V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 556

Tiered Pricing USD
1+ $5.1200 —
5+ $4.5960 -10%
10+ $4.4020 -14%
25+ $4.1700 -19%
50+ $4.0118 -22%
100+ $3.8669 -24%
500+ $3.6108 -29% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputWheatstone Bridge
Output SignalCosine, Sine
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance1.25 MOhms
Resistance Tolerance-
Voltage - Supply5.5V
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-40°C ~ 124°C
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-TDFN (2.5x2.5)
