Name: NTE491T
Brand: NTE Electronics, Inc
SKU: NTE491T
Price: 5.64 USD
Availability: InStock

REF: NTE491T NTE Electronics, Inc

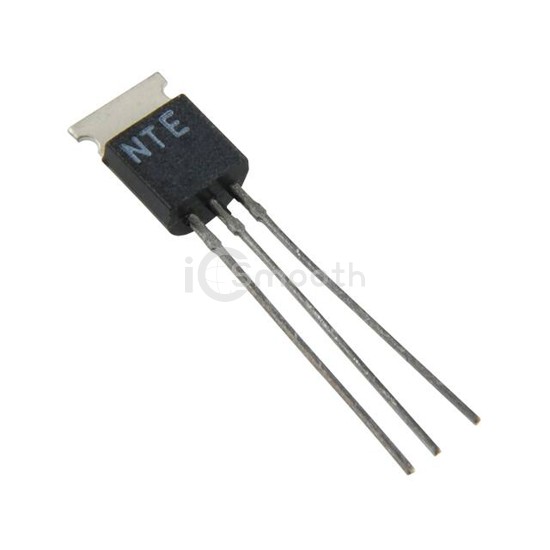

NTE491T

MOSFET N-CHANNEL 60V 310MA TO237

NTE491T is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CHANNEL 60V 310MA TO237. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-237AA.

Datasheet Request a Quote

In Stock: 620

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	+15V, -300mV
Input Capacitance (Ciss) (Max) @ Vds	60 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-237
Package / Case	TO-237AA
