Name: NTE2935
Brand: NTE Electronics, Inc
SKU: NTE2935
Price: 6.26 USD
Availability: InStock

REF: NTE2935 NTE Electronics, Inc

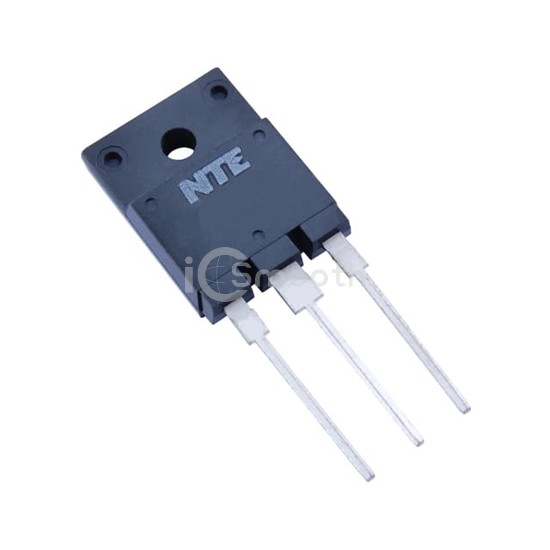

NTE2935

MOSFET N-CH 500V 6.2A TO3PML

NTE2935 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CH 500V 6.2A TO3PML. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 794

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	6.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	850mOhm @ 3.1A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	74 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1550 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	85W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PML
Package / Case	TO-3P-3 Full Pack
