Name: NTE2932
Brand: NTE Electronics, Inc
SKU: NTE2932
Price: 7.93 USD
Availability: InStock

REF: NTE2932 NTE Electronics, Inc

NTE2932

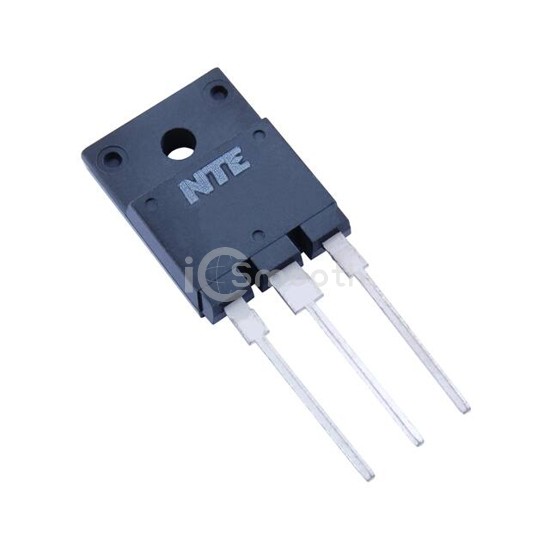

MOSFET N-CH 200V 21.3A TO3PML

NTE2932 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CH 200V 21.3A TO3PML. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 488

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	21.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	85mOhm @ 10.65A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	123 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	90W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PML
Package / Case	TO-3P-3 Full Pack
