NTE2930

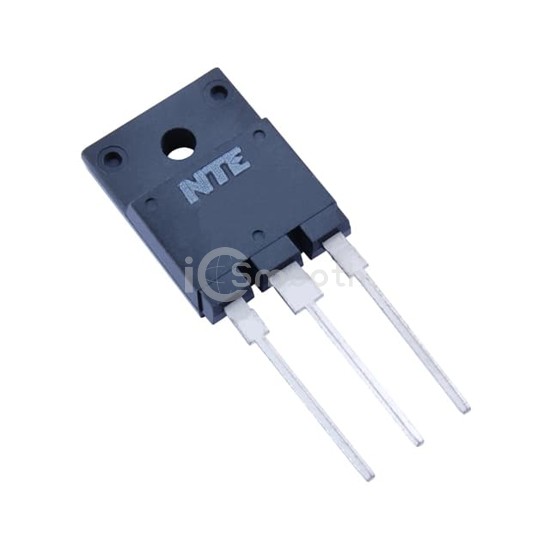

MOSFET N-CHANNEL 100V 31A TO3PML

NTE2930 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CHANNEL 100V 31A TO3PML. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 364

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	31A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	40mOhm @ 15.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	97 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2270 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	100W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PML
Package / Case	TO-3P-3 Full Pack
