Name: NTE2394
Brand: NTE Electronics, Inc
SKU: NTE2394
Price: 13.10 USD
Availability: InStock

REF: NTE2394 NTE Electronics, Inc

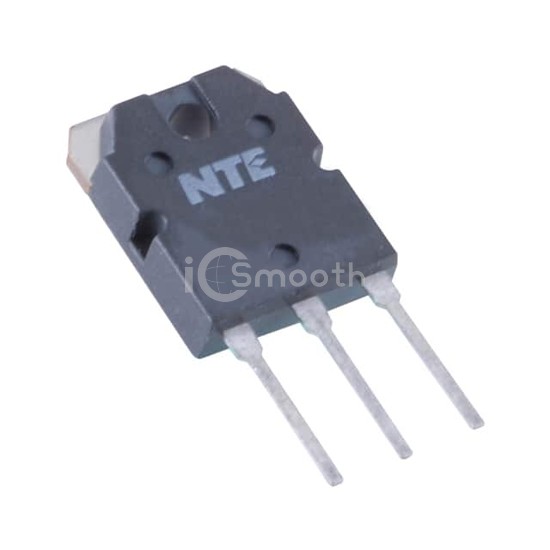

NTE2394

MOSFET N-CHANNEL 500V 14A TO3P

NTE2394 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CHANNEL 500V 14A TO3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3, SC-65-3.

Datasheet Request a Quote

In Stock: 24

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	400mOhm @ 7.9A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	120 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	180W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3P
Package / Case	TO-3P-3, SC-65-3
